Vacuum freeze dryer · R&D · small batch

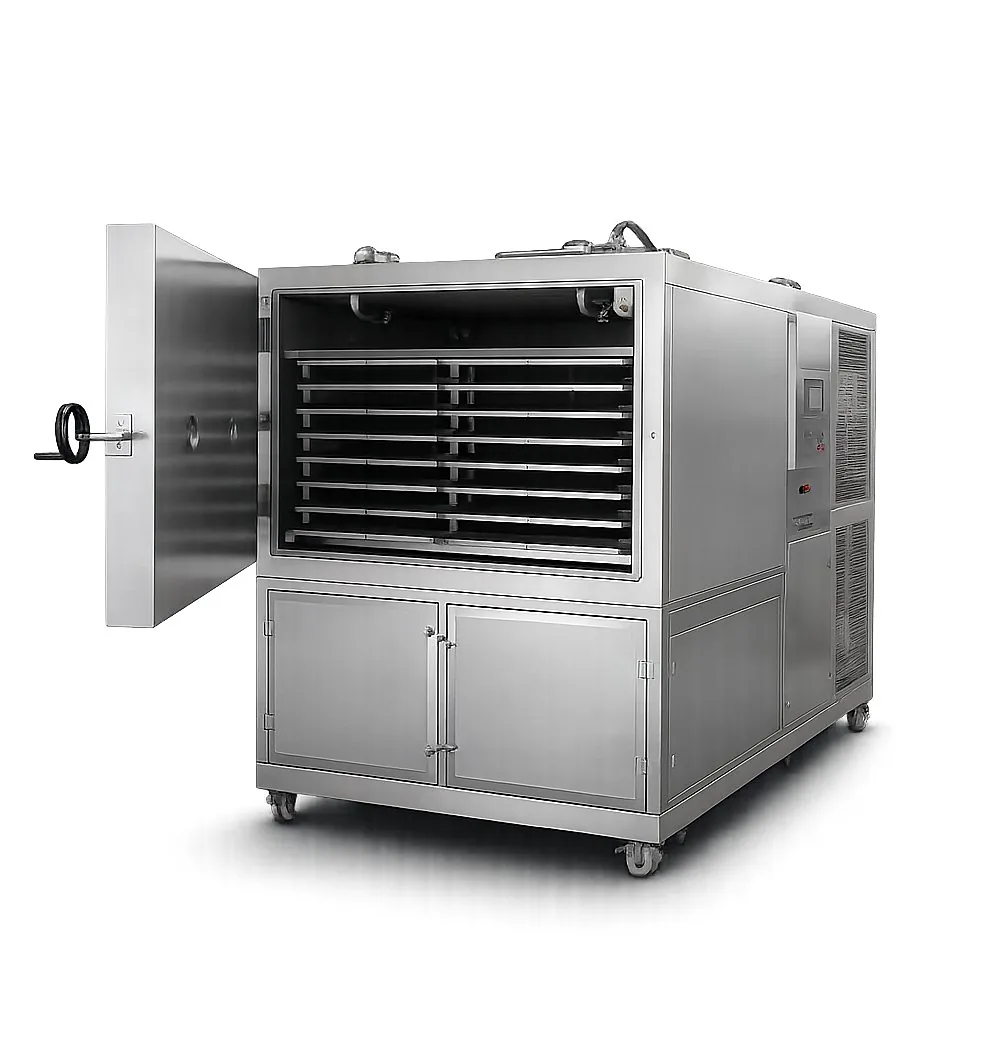

FD-10 vacuum freeze dryer
Compact all-in-one for R&D and first small batches — connect water and power and run.
Compact all-in-one for R&D and first small batches — connect water and power and run.
Within 30 days after deposit
T/T: 40% deposit, 60% balance before delivery. Final terms confirmed before contract
1 year from dispatch against workmanship defects; wear parts excluded
Video-guided installation and commissioning
Every machine passes a pre-delivery acceptance test at our factory.
Figures from the FD-10 quotation; final values per technical agreement.
| Model | FD-10 |
|---|---|
| Freeze drying area | 10 m² |
| Water capture / batch | 120 kg |
| Power | 25 kw / 380V / 50Hz |
| Heating mode | Double-side radiation |
| Shelf temperature | Ambient to +95 °C |
| Structure | All-in-one |
| Overall dimensions | 3700×1400×1800 mm |
| Weight | 3000 kg |
| Power consumption | 12 kw/h |
| Control | PLC |
Sizing help: How to choose an industrial freeze dryer · Freeze dryer ROI and running cost
Tell us the material, wet load and daily target — an engineer will size it and quote.
Every freeze dryer, drying and IQF model with specifications, build standards and what we need for a quotation. 6 pages, 1 MB.
