FD-30 industrial freeze dryer

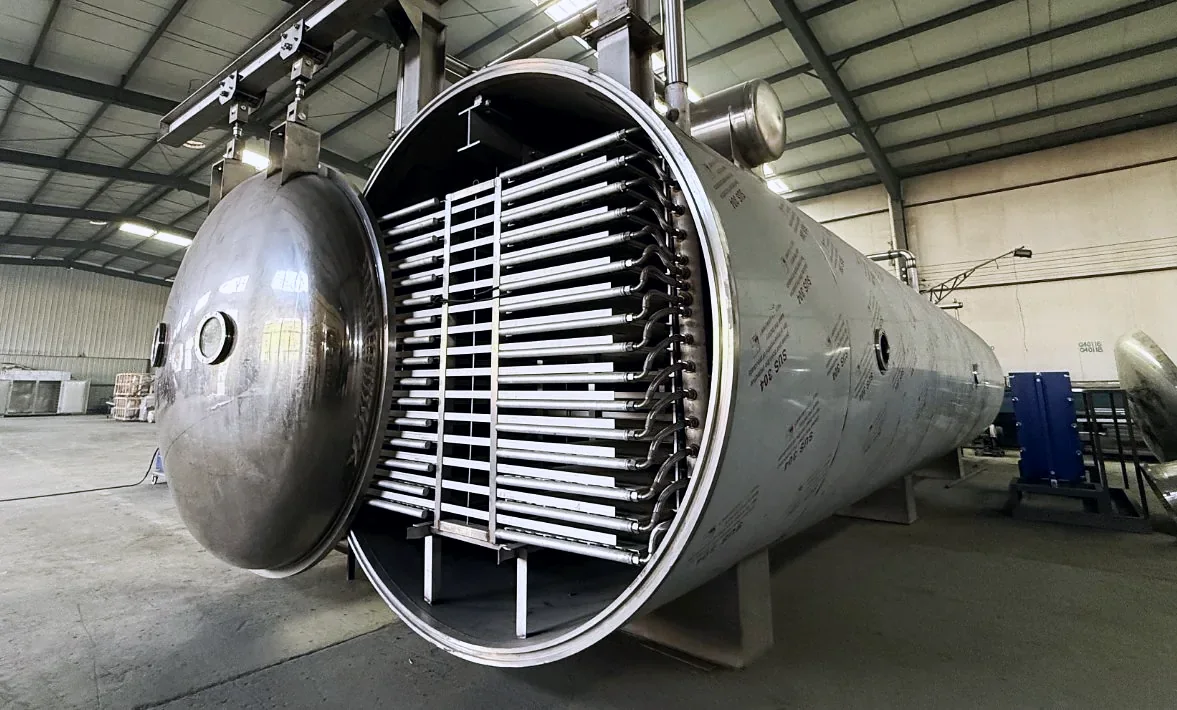

Entry to industrial scale — unit and chamber installed separately, double-side radiation heating.
Entry to industrial scale — unit and chamber installed separately, double-side radiation heating.
Confirmed in the quotation, scheduled from the deposit
T/T: 40% deposit, 60% balance before delivery. Final terms confirmed before contract
1 year from dispatch against workmanship defects; wear parts excluded
Installation, commissioning and operator training by our engineers
Every machine passes a pre-delivery acceptance test at our factory.
Refrigeration, vacuum and heating decide how fast and how evenly a batch dries. These are built and tested as part of every industrial system.
Figures from the FD-30 quotation; final values per technical agreement.
| Model | FD-30 |
|---|---|
| Freeze drying area | 30 m² |
| Water capture / batch | 400 kg |
| Power | 75 kW / 380 V / 50 Hz (steam heating) |
| Heating mode | Double-side radiation |
| Shelf temperature | Ambient to +95 °C |
| Structure | Split type |
| Overall dimensions | 8000×2000×2800 mm |
| Tray size | 1000×580×35 mm |
| Weight | 7000 kg |
| Control | PLC |
Sizing help: How to choose an industrial freeze dryer · Freeze dryer ROI and running cost
Tell us the material, wet load and daily target — an engineer will size it and quote.
